Refrigeration And freezing Plant

Product Details

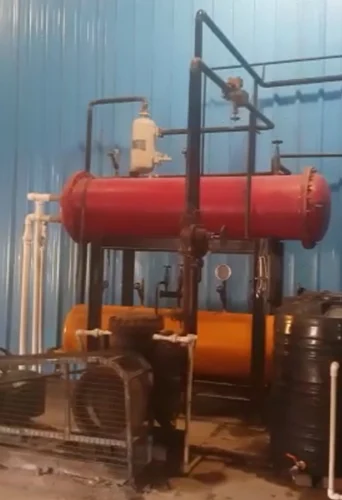

Tube ice plants are facilities designed for the production of tube ice, a type of cylindrical ice commonly used in various industries, including food and beverage, fisheries, and concrete cooling. ...Here's an overview of tube ice plants and how they operate: 1. **Ice Production Process:** - **Ice Formation:** Tube ice is formed by pouring water into vertical or horizontal tubes or molds, which are then frozen from the outside using a refrigerant. - **Harvesting:** Once the ice tubes reach the desired size and thickness, they are removed from the molds using a cutter or breaker mechanism. - **Storage:** The harvested tube ice is typically stored in insulated bins or storage areas to prevent melting and maintain quality until it is ready for distribution or use. 2. **Components of Tube Ice Plants:** - **Ice Making Machine:** The core component of a tube ice plant is the ice making machine, which consists of refrigeration systems, water pumps, ice molds or tubes, and harvesting equipment. - **Refrigeration System:** Tube ice machines use refrigeration systems to freeze water inside the ice molds or tubes. These systems typically use ammonia or Freon as the refrigerant. - **Water Supply System:** Tube ice plants require a reliable water supply system to supply water to the ice molds or tubes. Water quality is important to ensure the production of clear and pure ice. - **Control System:** Automated control systems are used to monitor and control various parameters such as water temperature, ice thickness, and harvesting cycles to optimize ice production and quality. 3. **Operation:** - **Ice Formation:** Water is continuously pumped into the ice molds or tubes, where it freezes layer by layer until the ice tubes reach the desired size. - **Harvesting:** Once the ice tubes have reached the desired thickness, they are ejected from the molds or tubes using a cutter or breaker mechanism. The harvested tube ice is then stored in bins or storage areas. - **Cleaning and Maintenance:** Regular cleaning and maintenance of the ice making machine and associated equipment are essential to ensure efficient operation and high-quality ice production. 4. **Applications:** - **Food and Beverage Industry:** Tube ice is commonly used in food and beverage applications, such as cooling beverages, food preservation, and display purposes. - **Fisheries:** Tube ice is used for seafood processing, storage, and transportation to maintain product freshness and quality. - **Concrete Cooling:** Tube ice is used in concrete cooling applications to control the temperature of concrete during mixing and curing processes, particularly in hot climates or large-scale construction projects. Overall, tube ice plants play a crucial role in various industries by providing a reliable source of tube ice for a wide range of applications, from food preservation to concrete cooling.
